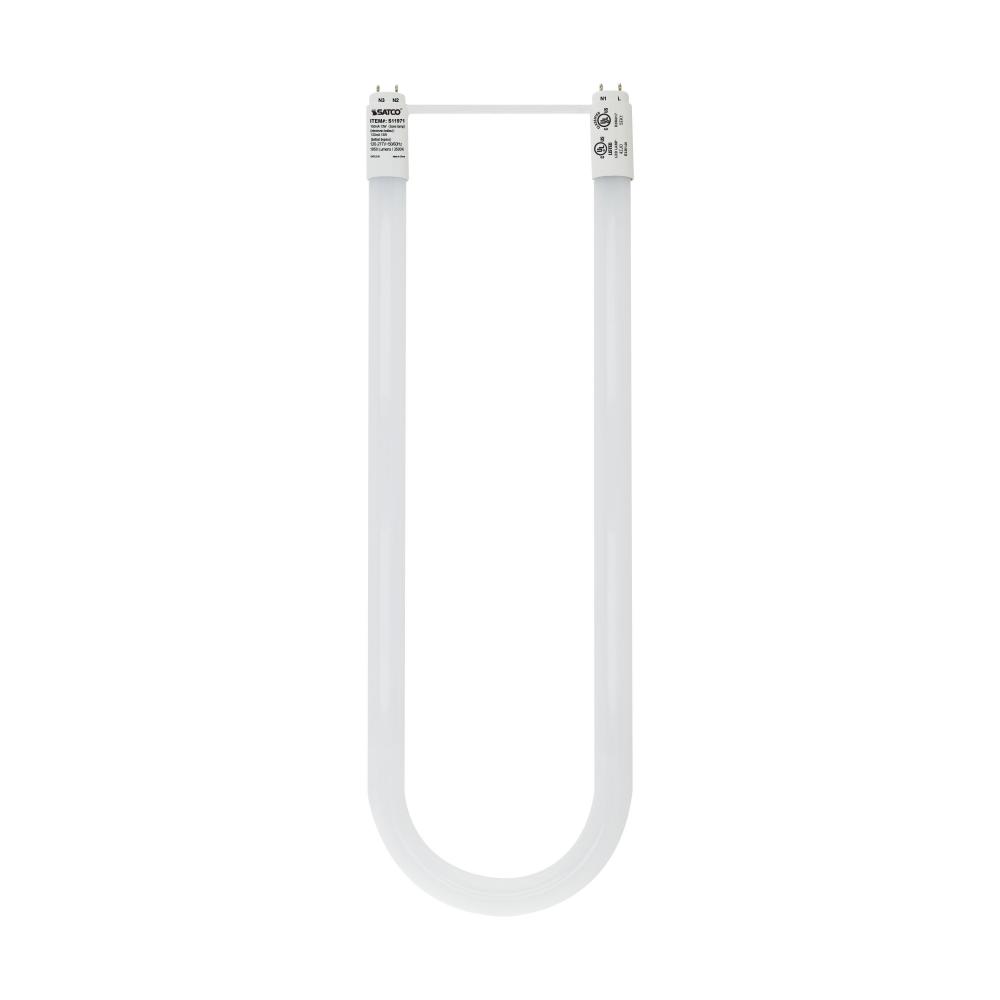

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast

Image may not reflect selected features

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast (LND3R)

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast Dependent or Ballast Bypass; Single or Double Ended Wiring

Product Specification

Item #

LND3R

Dimensions

Width: 1.10"

Additional product details

Category

LED

Sub-Category

LED T8 U Bend

Volts

120V-277V

Bulb Dimmable

Yes-Dimmable

Bulb Hours

50000

Bulb Kelvin

3500K

Bulb Shape

Diameter

1.1

EA Length

22.5

Harmonized Codes

8539.52.0051

Length

22.59

Lumens

1950L

Shap Carton Width

Ship Carton Height

1.1

Ship Weight

0.99

Warranty

5 Year Limited - T8 LED Bulbs

Weight

0.5

BAA Compliant

Ballast Bypass Direct

Dual

Ballasting Requirements

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread

160

Bulb ANSI Base

G13

Bulb Base

Medium Bi Pin

Bulb Finish

Frost

Burning Position

Universal

Carton Cubic Feet

0.0859

Cartons Per Unit

CCT Selectable

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Neutral White

Country Of Origin

China

CRI

Dimmable Down To

100 to 20 percent

Dimmable Function

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved

Yes

DLC Classification

Standard

DLC ID

PLD6LILX58CD

DLC Primary Use

Dual Mode Internal Driver (UL Type A and Type B)

Efficacy

150.00 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Enclosed Rated Lamp

FCC Compliant

Yes

Feature 1

Up to 60 percent energy savings versus standard T8 systems

Feature 2

Ballast compatible and ballast bypass in one lamp

Feature 3

Bypass mode works in single or double ended wiring

Feature 4

Shatterproof plastic

Feature 5

Five year warranty

Feature 6

DLC certified

Flourescent Equivalent

32W

Housing Color

White

Incandescent Equivalent

50W

Installation Notes

Not for use in vapor tight fixtures. Direct replacement for 32W/23T8/U6 lamps only

IOT Enabled

IP Rating

IP20

Lamp Ballast Type A/B/C

Type A/B

Lamp End Type

Single Ended;Double Ended

Lamp Filament

LED

Leg Spacing

Lens Finish

Frost

Lens Material

Plastic (PS)

Location Rating

Damp

Long Description

SATCO|NUVO's S11971 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium

Material

Plastic

Nominal Length

22.5

NSF Approved

ETL Sanitation listed (conforms to NSF)

Operating Frequency

50/60Hz

Operating Temp

-25C (-13F) to +45C (+113F)

Pack Type

Color Box

Power Factor

0.9

Quantity In Pack

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium bi pin

SDS class

LED_Lamp

Shatter Proof Text

Yes

Short Description

13T8U6/LED/22.5-835/DUAL

Style

Utility

Surge Protection

Built-in-surge protection - 0.7KV

Technology

LED

Title 20 Compliant

Total Harmonic Distortion

20%

Tube Guard Use

Yes

Wattage Selectable

Watts

13W

Finish Family
