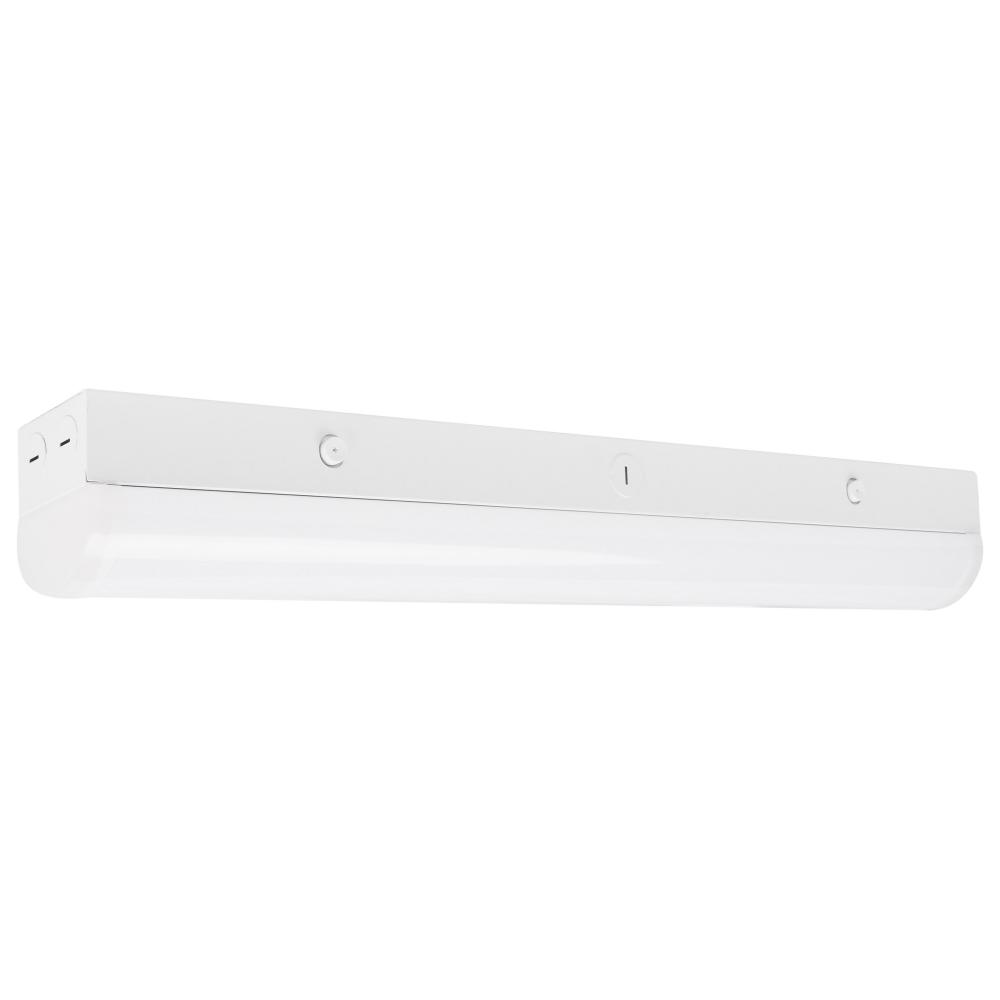

2 ft. LED; Linear Strip Light; CCT Selectable; White Finish; 100-277 Volt

Image may not reflect selected features

2 ft. LED; Linear Strip Light; CCT Selectable; White Finish; 100-277 Volt (A33Q8)

2 ft. LED; Linear Strip Light; CCT Selectable; White Finish; 100-277 Volt

Product Specification

Item #

A33Q8

Dimensions

Height: 3.27"

Width: 2.95"

Additional product details

Category

Linear Strip

Sub Category

Strip Fixture

Style

Utility

Additional Info

Other DLC Listings: PL5HHJWSKN81, Standard, Direct Linear Ambient Luminaires.

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Neutral White to Daylight

Dimmable

Yes-Dimmable

Each Height

5.31

Each Length

26.1

Each Width

5.2

Length

Lumens

2735L-2830L

Tariff Code

9405.11.6010

Warranty

5 Year Limited - Fixtures

Amps

0.200-0.072A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

B_U_G_Rating

B1-U3-G1

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 10 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium; Standard

DLC Primary Use

Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires

Each Cube

0.4171

Each Quantity

Efficacy

136.75/139.13/141.50 LPW

FCC Compliant

Yes

Feature 1

Flicker Free Driver

Feature 2

CCT Selectable

Feature 3

Multiple Mounting Options

Feature 4

Optional Suspension Kit (65/706)

Feature 5

Optional Add On Microwave Sensor (86/202)

Feature 6

Optional Add On PIR Sensor (86/211)

Feature 7

5 Year Warranty

Finish Family

White

Flicker Free

Yes

Has Driver

Yes

Has Emergency Battery

HID Equiv

100W-150W

Incandescent Equivalent

150W-175W

Indoor Outdoor

Indoor

IOT Enabled

IP Rating

IP20

JA8 Compliant

Lens Finish

White

Lens Material

Polycarbonate (PC)

Long Description

Introducing another addition to our LED strip lights line. SATCO|NUVO's 65-700 is a new cULus listed 20-Watt, 2-foot strip addition is CCT selectable (3500K/4000K/5000K) with a voltage range of 100-277 volts, and is 0-10 volt dimmable. It has a flicker

Material

Steel

Mounting Diameter

4.75

Mounting Procedure

Ceiling/Wall

NSF Approved

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +60C (+140F)

Pack Type

Box

Photocell

Optional Add-On

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Introducing another addition to our LED strip lights line. This new cULus listed 20-Watt, 2-foot strip addition is CCT selectable (3500K/4000K/5000K) with a voltage range of 100-277 volts, and is 0-10 volt dimmable. It has a flicker free driver, is IP20 ra

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

2' LINEAR STRIP WHITE FINISH

Sloped Ceiling Compatible

Yes

Specification Notes

Add on sensors, 86-202 and 86-211, are only rated for 120-277 Volt

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

13.61%

Wattage Selectable

Weight Lb.

1.78

Finish
