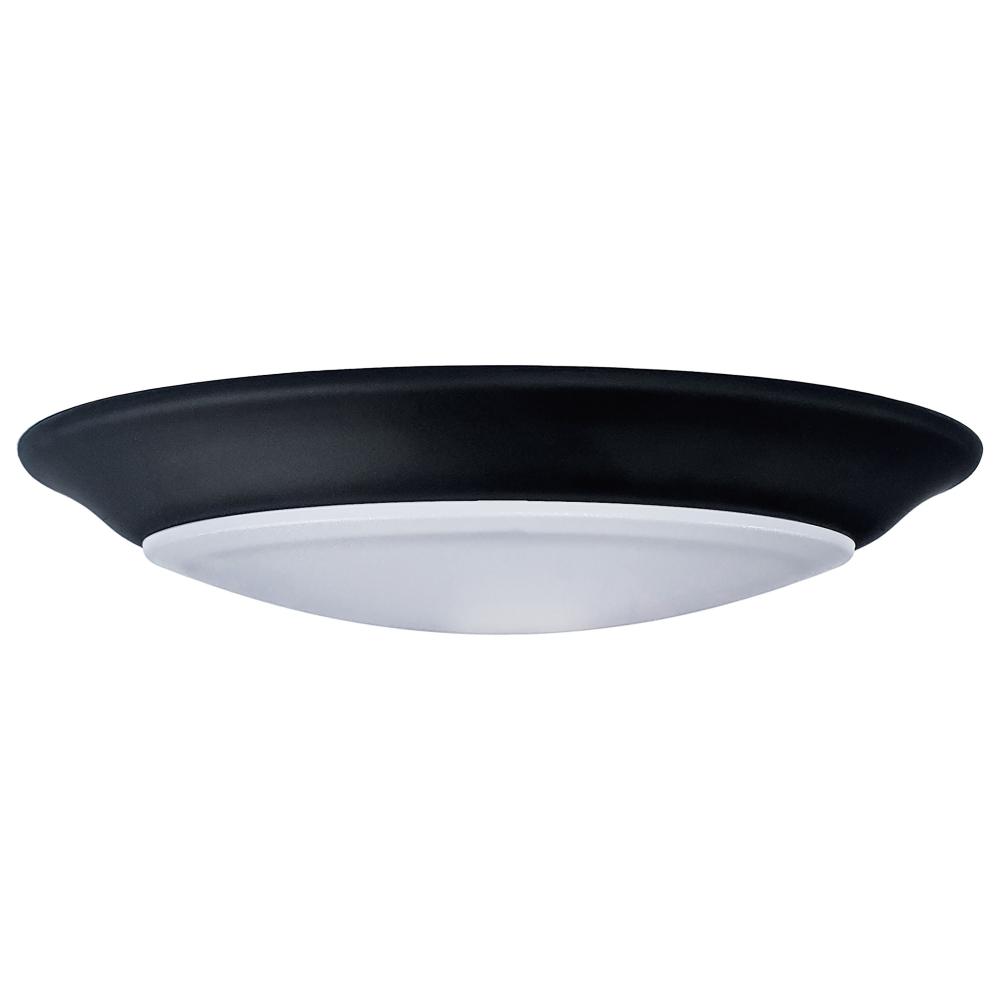

7 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; Black Finish

Image may not reflect selected features

7 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; Black Finish (A6798)

7 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; Black Finish

Product Specification

Item #

A6798

Dimensions

Height: 1.42"

Width: 7.42"

Additional product details

Category

Close-to-Ceiling

Sub Category

LED Disk

Style

Contemporary

Bulb Volts1

120V

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Diameter

7.42

Dimmable

Yes-Dimmable

Each Height

7.63

Each Length

7.63

Each Width

1.69

Lumens

770L-900L

Tariff Code

9405.11.8020

Warranty

5 Year Limited - Fixtures

Amps

0.125A

ANSI Base

Integrated

BAA Compliant

Beam Angle

110

CA Prop-65

Lead

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Connection

Hardwire

Country Of Origin

Malaysia

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Forward Phase or Reverse Phase

Each Cube

0.0569

Each Quantity

Efficacy

51.33/55.67/60.00 lm/w

ES Category

Other

ES Unique ID

ESID-2507677

FCC Compliant

Yes

Feature 1

5 CCT Selectable

Feature 2

Dimmable

Feature 3

Wet Location Rated

Feature 4

93 CRI

Feature 5

Black

Feature 6

Mounts to 3 inch and 4 inch Junction Boxes

Feature 7

Dia: 7.42 inches x H: 1.42 inches

Feature 8

Dia: 7.42 inches x H: 1.42 inches

Finish Family

Black

Fixture shape

Round

Has Driver

Incandescent Equivalent

60W

Indoor Outdoor

Indoor

Installation Notes

Keyhole Slots

IOT Enabled

JA8 Compliant

Yes

Lens Finish

White

Lens Material

Acrylic

Long Description

Introducing SATCO|NUVO's 62-1804 LED CCT Selectable Disk Light with ColorQuick technology! This 7-inch, 15-watt disk light in black features a high CRI of 93, 2.5kV surge protection, and wet location rating. This CCT Selectable Disk Light is rated for

Material

Steel

Mounting Procedure

Ceiling

NSF Approved

Operating Frequency

60Hz

Operating Temp

-25C (-13F) to +40C (+104F)

Pack Type

Color Box

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Introducing SATCO|NUVO's LED CCT Selectable Disk Lights with ColorQuick technology! Available in 7-inch and 10-inch sizes, these disk lights are perfectly suited for various spaces making them ideal for Multi-Family and Residential locations. These dis

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

7" LED DISK LIGHT BLACK FINISH

Sloped Ceiling Compatible

Yes

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Yes

Wattage Selectable

Weight Lb.

0.58

Finish

Additional options that would change other selections
