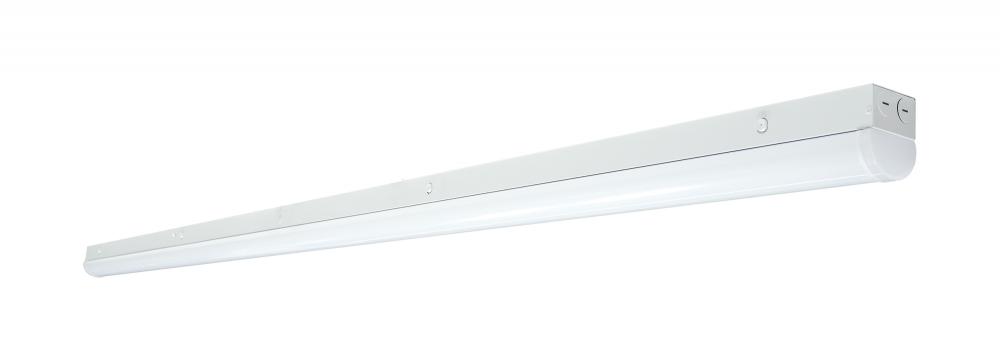

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish

Image may not reflect selected features

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish (A33QA)

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish

Product Specification

Item #

A33QA

Dimensions

Height: 3.27"

Width: 2.95"

Additional product details

Category

Linear Strip

Sub Category

Strip Fixture

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

5.32

Each Length

98.03

Each Width

5.2

Length

Lumens

3900L-6750L

Tariff Code

9405.11.6010

Warranty

5 Year Limited - Fixtures

Amps

0.250-0.108/0.333-0.144/0.417-0.181A

ANSI Base

Integrated

Beam Angle

120

B_U_G_Rating

B2-U4-G2

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 10 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium; Premium; Standard

DLC Primary Use

Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings

Each Cube

1.5694

Each Quantity

Efficacy

130.00/133.13/135.00 LPW

FCC Compliant

Yes

Feature 1

Flicker Free Driver

Feature 2

Wattage Selectable

Feature 3

CCT Selectable

Feature 4

Multiple Mounting Options

Feature 5

Optional Suspension Kit (65/707)

Feature 6

Optional Add On Microwave Sensor (86/202)

Feature 7

Optional Add On Emergency Battery Back Up (65/708)

Feature 8

5 year warranty

Finish Family

White

Flicker Free

Yes

Has Driver

Yes

HID Equiv

150W-200W

Incandescent Equivalent

150W-175W

Indoor Outdoor

Indoor

Installation Notes

Maximum connected units is 10. If dimming, the dimmer max load will dicatate how many units can be on the run/control.

IP Rating

IP20

JA8 Compliant

Lens Finish

White

Lens Material

Polycarbonate (PC)

Long Description

SATCO|NUVO's 65-702 CCT and wattage selectable linear strip light is the ideal choice in utility lighting fixtures. The rugged quality construction and ease of installation make these ideal for commercial applications. With a quick release button for e

Material

Steel

Mounting Diameter

4.75

Mounting Procedure

Ceiling/Wall

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +60C (+140F)

Pack Type

Box

Photocell

Optional Add-On

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's CCT and wattage selectable linear strip light is the ideal choice in utility lighting fixtures. The rugged quality construction and ease of installation make these ideal for commercial applications. With a quick release button for easy set

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

8' LINEAR STRIP WHITE FINISH

Sloped Ceiling Compatible

Yes

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

10.77%

Wattage Selectable

Yes

Weight Lb.

6.84

Finish

Additional options that would change other selections
