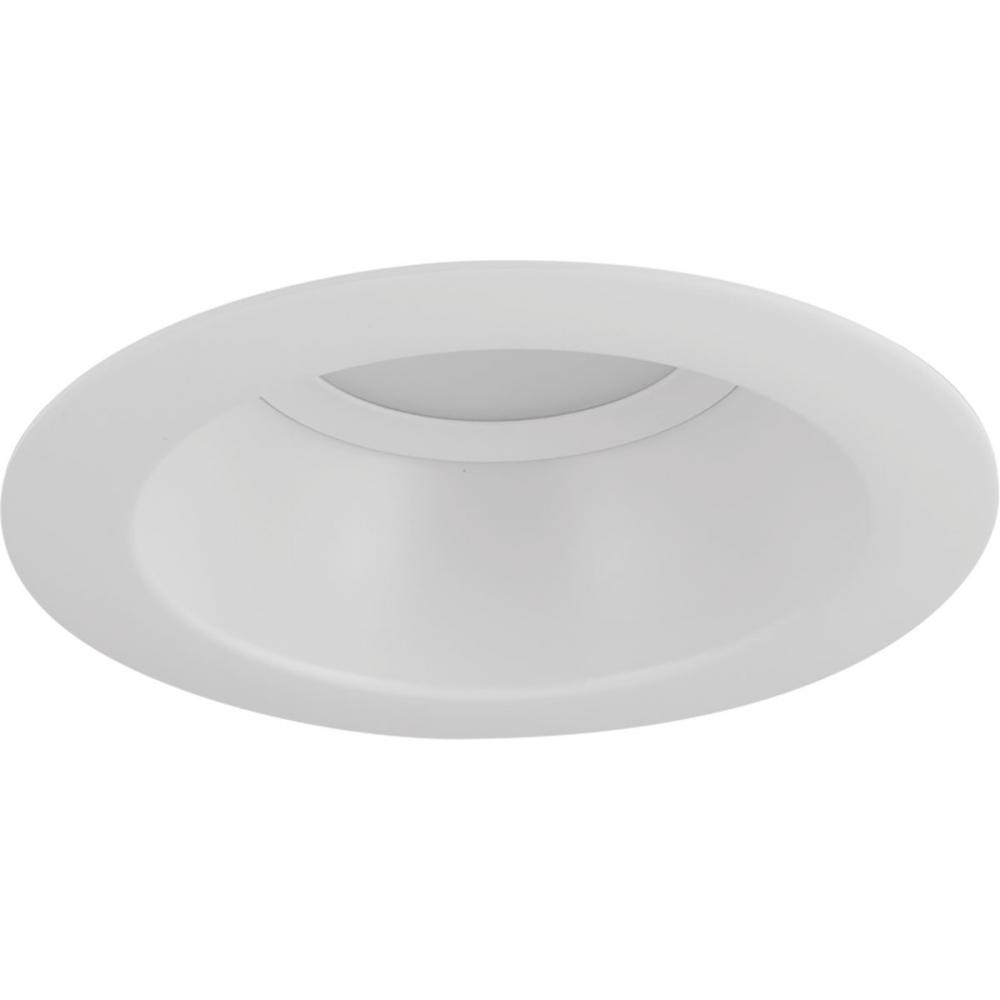

5" LED Recessed Trim for 5" Housing (P84-LED)
Image may not reflect selected features
/vendors/149/large/p8061_28-30k.jpg
additional image
additional image
5" LED Recessed Trim for 5" Housing (P84-LED) (1VHY2)
The 5" P8061 is ideal for use in both new construction as well as remodel/retrofit. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75 percent energy savings. The P8061 is equipped with both Edison base adapter and quick link connector allowing easy installation in many standard incandescent recessed housings. White finish.
Downloads
Product Specification
Item #
1VHY2
Dimensions
Height: 4.00"
Width: 6.34"
Length: 6.34"
Additional product details
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
White
Style
Traditional
Option
Energy Efficient , Energy Star , Title 24 , Wet Rated , LED
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Recessed-Trim
Finish
Satin White
Option
Energy Efficient , Energy Star , Title 24 , Wet Rated
Family
LED Recessed
Glass
White
Voltage
120
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
LED
Introduction Date
01/16/2017
Kelvin
3000
Keyword(s)
flush mount;ceiling fixture;ceiling light;led light;energy efficient
Length
6.34
Lumens / Light Output
713
Material
Steel
Ship Carton Height
7.50
Ship Carton Length
7.50
Ship Carton Width
4.37
Ship Weight
0.90
Special Features
Satin White finish.;Diffused polycarbonate lens controls direct glare from the LEDs.;Easy "Push and Twist" installation with (3) friction spring clips.;Can be installed in most competitors 5" recessed housings.;Dimmable to 10% with many Triac/F
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
1.35
Wire Included
6 in
Americans with Disabilities Act
No
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Certified Listed Location
Wet Location Listed
Construction Material Main Part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153P;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Leviton_Trimatron 6681
Dimming Protocol
Triac/Forward Phase
Dimming Range
10%
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
Grounded Convenience Outlet included
No
JA8
2016
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
10
Lens Shade Material
Polycarbonate
Lumens per Watt
71.00
Mount Location
Ceiling Flush/Recessed
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
No
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
6.2 in dia.
Finish
Additional options that would change other selections
Glass
Additional options that would change other selections
Shade
Additional options that would change other selections
Included Items
Bulbs: (1) x 10 Watt LED
