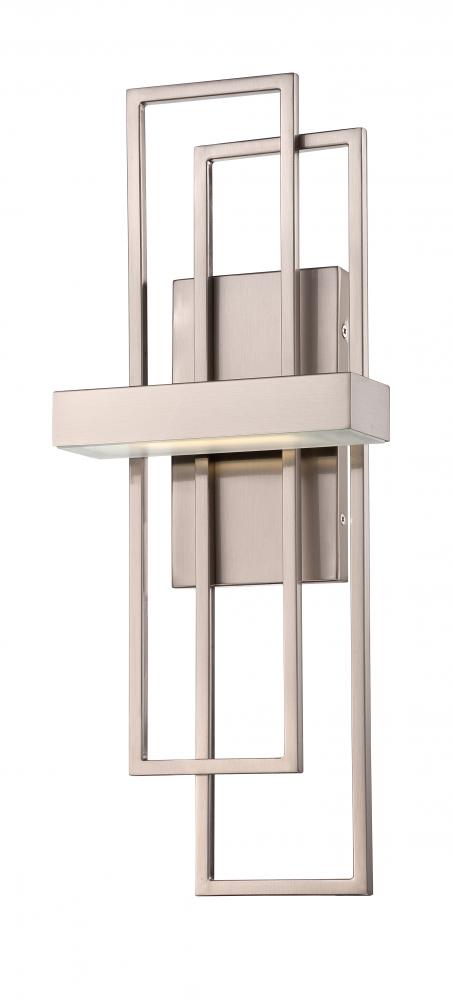

Frame - LED Wall Sconce - Brushed Nickel Finish (9ZY4J)

Frame; LED Wall Sconce with Frosted Lens

Product Specification

Item #

9ZY4J

Dimensions

Height: 20.25"

Width: 7.88"

Additional product details

Category

Vanity & Wall

Sub Category

Wall

Style

Contemporary

Collection

Frame

Avg Rated Hours

30000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White

Dimmable

Yes-Dimmable

Each Height

8.25

Each Length

20.75

Each Width

5.25

Lumens

800L

Tariff Code

9405.11.6010

Warranty

3 Year Limited - Fixtures

Amps

0.083A

ANSI Base

Integrated

CA Prop-65

Lead

CCT Selectable

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Connection

Hardwire

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable

Each Cube

0.5201

Each Quantity

Efficacy

80.00 LPW

FCC Compliant

Yes

Feature 1

Uses 10 watt integrated LED in warm white with 800 lumens

Feature 10

Includes mounting hardware and instructions for installation, assembly and maintenance

Feature 2

Brushed nickel finish provides a lustrous versatile elegance

Feature 3

Fixture dimensions: 20.25-inch height, 7.88-inch width, 4-inch ext

Feature 4

Our fixtures are rated for 30000 hours of use and are dimmable from 100 to 10 percent

Feature 5

Entry Way; Kitchen; Dining; Bath

Feature 6

Includes mounting hardware and installation instructions

Feature 7

Rated for Indoor and Enclosed Outdoor Locations

Feature 8

Dimmable

Feature 9

Frosted lens

Finish Family

Nickel

Incandescent Equivalent

60W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Finish

Frosted

Long Description

The Frame 62-105 LED wall sconce is minimal design with a large dose of contemporary styling. The overlapping rectangles add depth and visual interest behind the integrated LED light source. A brushed nickel suits existing finishes, making this wall sconce

Material

Glass / Steel

Mounting Extends

0.79

Mounting Height

7.87

Mounting Procedure

Wall

Mounting Width

4.49

Operating Frequency

60Hz

Operating Temp

0C (+32F) to +50C (+122F)

Pack Type

Box

Power Factor

0.99

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

The Frame LED Wall Sconce offers contemporary style in a minimalist design. It features airy, open rectangles overlapping behind the integrated LED light source and is finished in a lustrous Brushed Nickel.

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

FRAME LED WALL SCONCE

Temperature (CCT)

3000K

Title 20 Compliant

Title 24 Compliant

Yes

Up Down Installation
